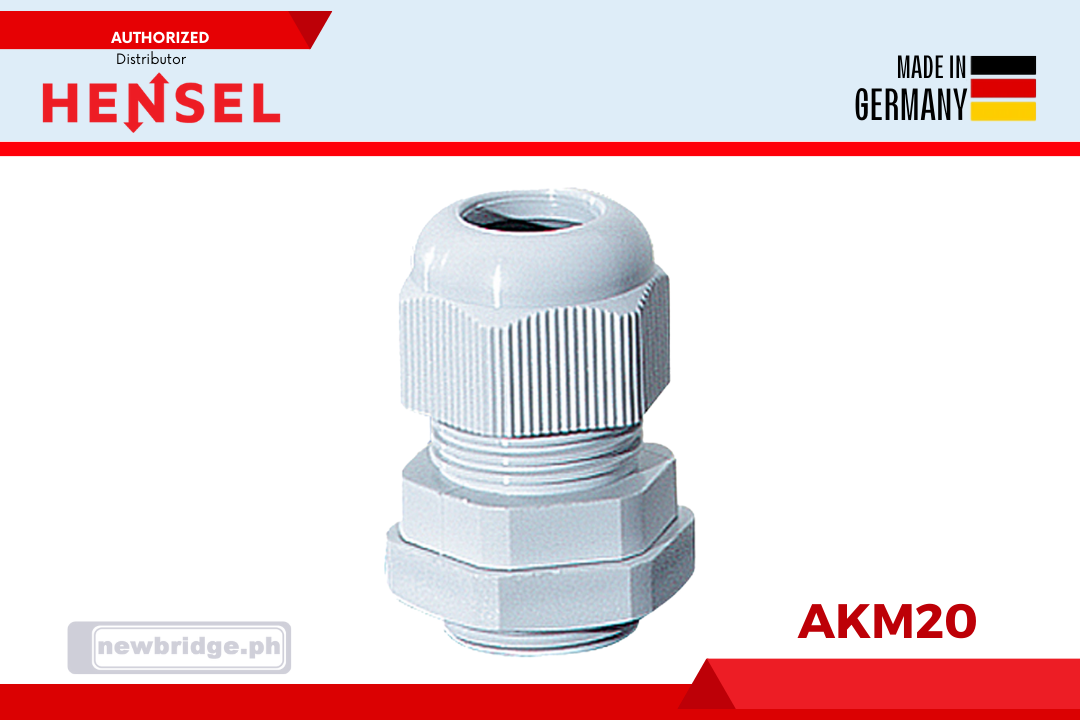

Product: AKM 20 Cable Gland for knockouts M 20
Ref. Catalog: AKM 20
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (3 x 3 x 3)
Weight: g (0.01)
Price: 228.00
Stocks: 1
Add to cartSealing range Ø 6,5-13,5 mm ISO thread M 20 x 1.5 bore-hole: Ø 20.3 mm Polyamide IP 66 / IP 67 / IP 69
- Cable glands
- for knockouts M 20
- sealing range Ø 6,5-13,5 mm
- ISO thread M 20 x 1.5
- bore-hole: Ø 20.3 mm
- wall thickness up to 3 mm
- with strain relief and locknut
- for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
- ambient temperature - 25 °C to + 55 °C
- glow wire test IEC 60695-2-11: 960 °C
- colour: grey, RAL 7035
- degree of protection: IP 66 / IP 67 / IP 69
| Title | Download |
|---|---|
| AKM20 Data Sheet | Download |
