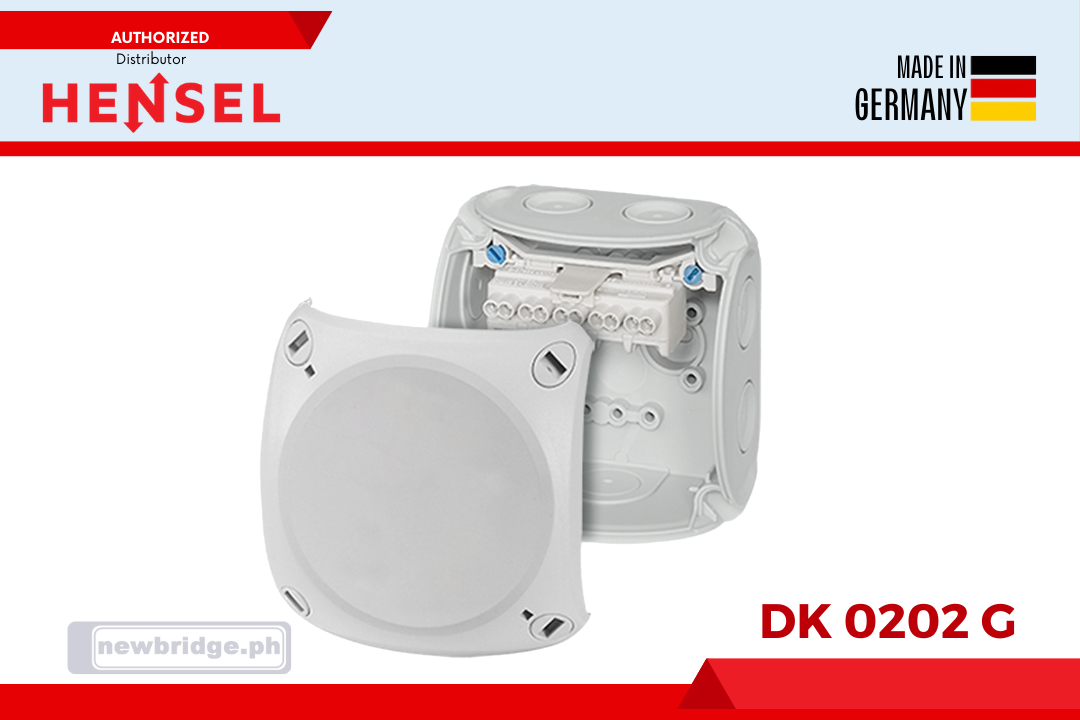

Product: DK 0202 G Cable Junction Box Polypropelene
Ref. Catalog: DK 0202 G
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (10 x 10 x 7)
Weight: g (0.13)
Price: 497.00
Stocks: 1
Add to cart• 0.75-2.5 mm², Cu 3~ • terminal with 2 clamping units per pole • 5-pole per pole 8 x 0,75 mm² f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f • with integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm • with one cable entry in the bottom, sealing range Ø 6.0-13.0 mm • lid fasteners sealable without accessories • retaining strap and external brackets for wall fixing included • colour: grey, RAL 7035 • To close opened membranes use grommets type EDK. Degree of protection = IP 66.
- 0.75-2.5 mm², Cu 3~
- terminal with 2 clamping units per pole
- 5-pole per pole 8 x 0,75 mm² f, 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 2 x 4 mm² r / f
- with integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
- with one cable entry in the bottom, sealing range Ø 6.0-13.0 mm
- lid fasteners sealable without accessories
- retaining strap and external brackets for wall fixing included
- colour: grey, RAL 7035
- To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Title | Download |
---|---|
DK0202G Data Sheet | Download |
