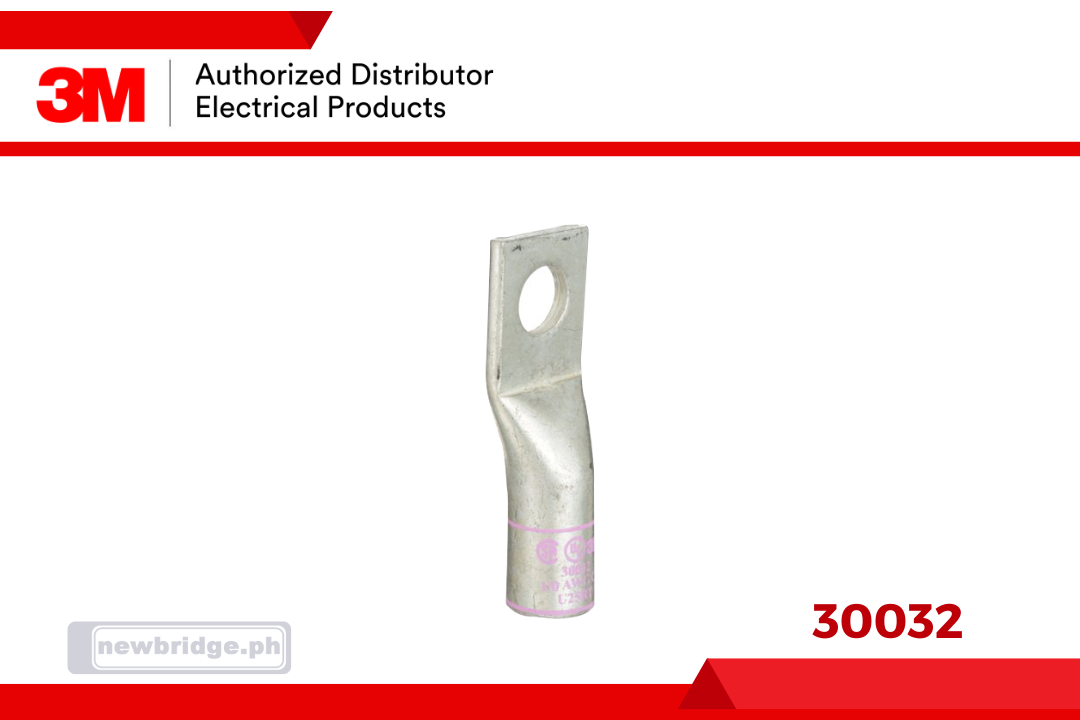

Product: 30032, 3M™ Scotchlok™ Copper One Hole Lug, up to 35 kV, 1/0 AWG, Stud Size 3/8 (10), Pink, 10/Case
Ref. Catalog: 30032
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (5.5 x 1.91 x 1.3)
Weight: g (100)
Price: 217.00
Stocks: 1
Add to cart3M Scotchlok Copper Compression Lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. They are available in one-hole, standard-barrel and one-hole and two-hole long-barrel versions: Scotchlok lug 30000 Series are one-hole, standard-barrel length lugs and are designed to cover conductor sizes from 6 AWG through 4/0 AWG. The Scotchlok lug 31000 Series consists of: o one-hole, long-barrel length lugs designed to cover conductor sizes from 2 AWG through 600 kcmil (MCM) and, o two-hole, long-barrel length lugs designed to cover conductor sizes from 6 AWG through 1000 kcmil (MCM) They are designed to terminate copper conductors. Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure simplicity and ease of conductor insertion.
- Standard barrel ensures a secure fit and offers reliable performance
- Barrel has colored stripes that help to indicate the wire range
- Suitable for indoor and outdoor applications
- Made of copper for good conductivity and tin plating for corrosion resistance
- Rated up to 35 kV
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
The 3M™ Scotchlok™ Copper Lugs 30000 Series are one hole, standard barrel lugs from 6–4/0 AWG designed for terminating copper conductors. Each lug is tin plated to resist corrosion and can be installed with standard industry tools. Chamfered ends ensure ease of conductor insertion.
