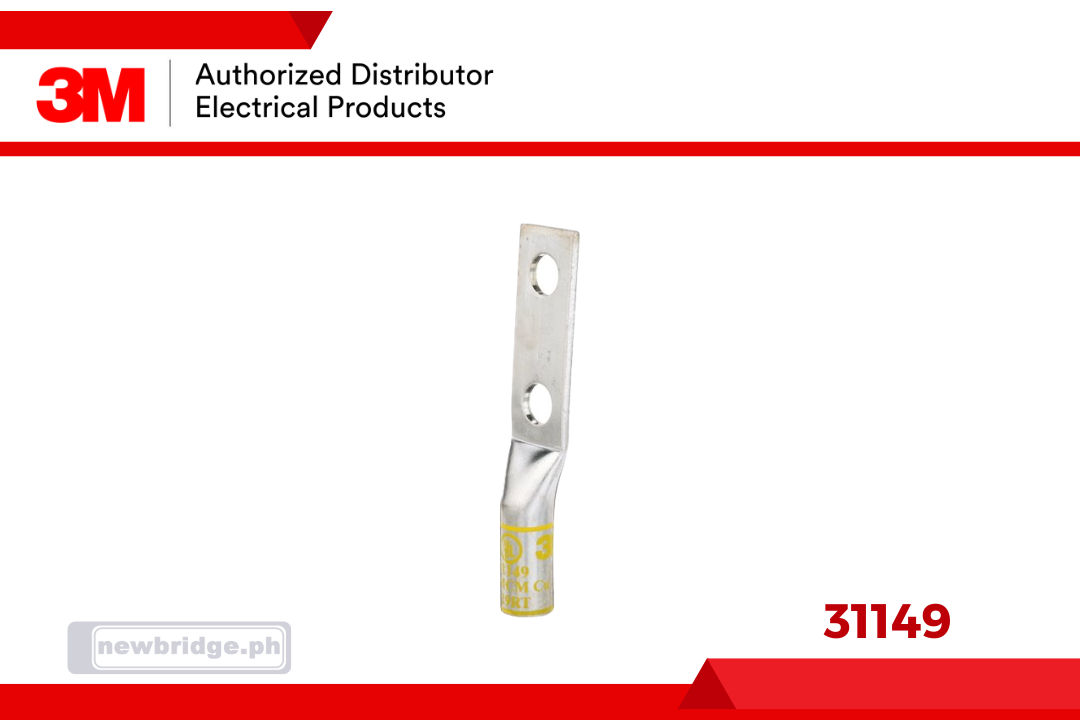

Product: 31149, 3M™ Scotchlok™ Copper Two Hole Long Barrel Lug, up to 35 kV, 250 kcmil, Yellow
Ref. Catalog: 31149
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (13.49 x 2.87 x 1.91)
Weight: g (100)
Price: 693.00
Stocks: 1
Add to cart3M Scotchlok Copper Compression Lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. They are available in one-hole, standard-barrel and one-hole and two-hole long-barrel versions: Scotchlok lug 30000 Series are one-hole, standard-barrel length lugs and are designed to cover conductor sizes from 6 AWG through 4/0 AWG. The Scotchlok lug 31000 Series consists of: o one-hole, long-barrel length lugs designed to cover conductor sizes from 2 AWG through 600 kcmil (MCM) and, o two-hole, long-barrel length lugs designed to cover conductor sizes from 6 AWG through 1000 kcmil (MCM) They are designed to terminate copper conductors. Each lug is electro-tin plated to resist electrolytic corrosion. The lugs are installed using standard industry tooling. Chamfered ends ensure simplicity and ease of conductor insertion.
- Long barrel ensures a secure fit and offers reliable performance
- Barrel has colored stripes that help to indicate the wire range
- Suitable for indoor and outdoor applications
- Made of copper for good conductivity and tin plating for corrosion resistance
- For up to 35 kV applications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ 31100 2 Hole Compression Lug is for use with copper conductors only. The seamless copper construction offers high conductivity and a tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
