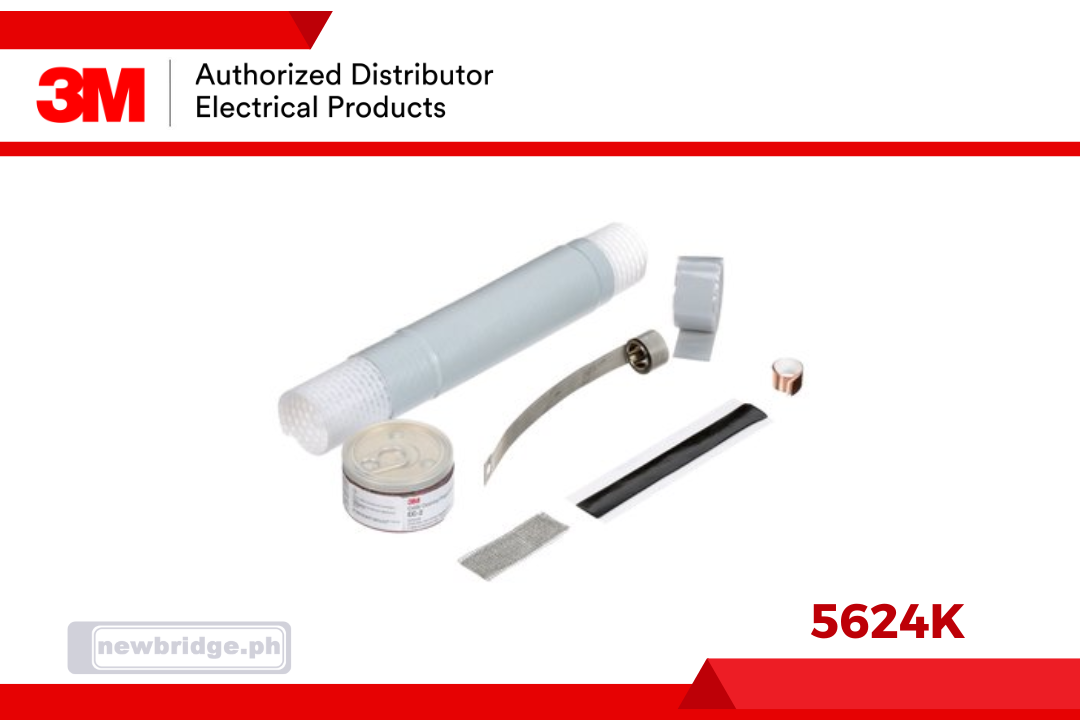

Product: 5624K, 3M™ Cold Shrink QT-II Outdoor Termination Kit
Ref. Catalog: 5624K
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (36 x 16 x 13)
Weight: g (1000)
Price: 19,334.50
Stocks: 1
Add to cartOne-piece cold shrink termination. High dielectric-constant material manages the distribution of electric field stress Suitable for weather protected areas (indoor) Silicone rubber insulation is track-resistance and hydrophobic action Silicone cold shrink application provides constant radial pressure, "living seal" Comes with sufficient materials to make 3 terminations Voltage rating per class of termination family: 5/8 kV:95 kV BIL, 15 kV;110 kV BIL Meets IEEE Standard 48, Class 1 for weather-protected applications 3M™ Cold Shrink QT-II Outdoor Termination Kit 5620K Series includes sufficient material to make 3, skirted terminations. Each kit has materials to make 3 single-phase terminations for tape shield, wire shield and UniShield® power cables. 3M™ Cold Shrink QT-II Outdoor Termination Kit 5620K Series is designed for terminating solid dielectric shielded, medium voltage power cables. The QT II termination uses high dielectric constant (High K) stress control tube insulated with a UV stable, track resistant, silicone insulator. The track resistant, hydrophobic properties of the silicone rubber minimize leakage currents. Meets the requirements of IEEE Standard 48, for Class 1 for outdoor, weather-exposed environments.
- One-piece cold shrink termination.
- High dielectric-constant material manages the distribution of electric field stress
- Suitable for weather protected areas (indoor)
- Silicone rubber insulation is track-resistance and hydrophobic action
- Silicone cold shrink application provides constant radial pressure, "living seal"
- Comes with sufficient materials to make 3 terminations
- Voltage rating per class of termination family: 5/8 kV:95 kV BIL, 15 kV;110 kV BIL
- Meets IEEE Standard 48, Class 1 for weather-protected applications
3M™ Cold Shrink QT-II Outdoor Termination Kit 5620K Series includes sufficient material to make 3, skirted terminations. Each kit has materials to make 3 single-phase terminations for tape shield, wire shield and UniShield® power cables.
3M™ Cold Shrink QT-II Outdoor Termination Kit 5620K Series is designed for terminating solid dielectric shielded, medium voltage power cables. The QT II termination uses high dielectric constant (High K) stress control tube insulated with a UV stable, track resistant, silicone insulator. The track resistant, hydrophobic properties of the silicone rubber minimize leakage currents. Meets the requirements of IEEE Standard 48, for Class 1 for outdoor, weather-exposed environments.
