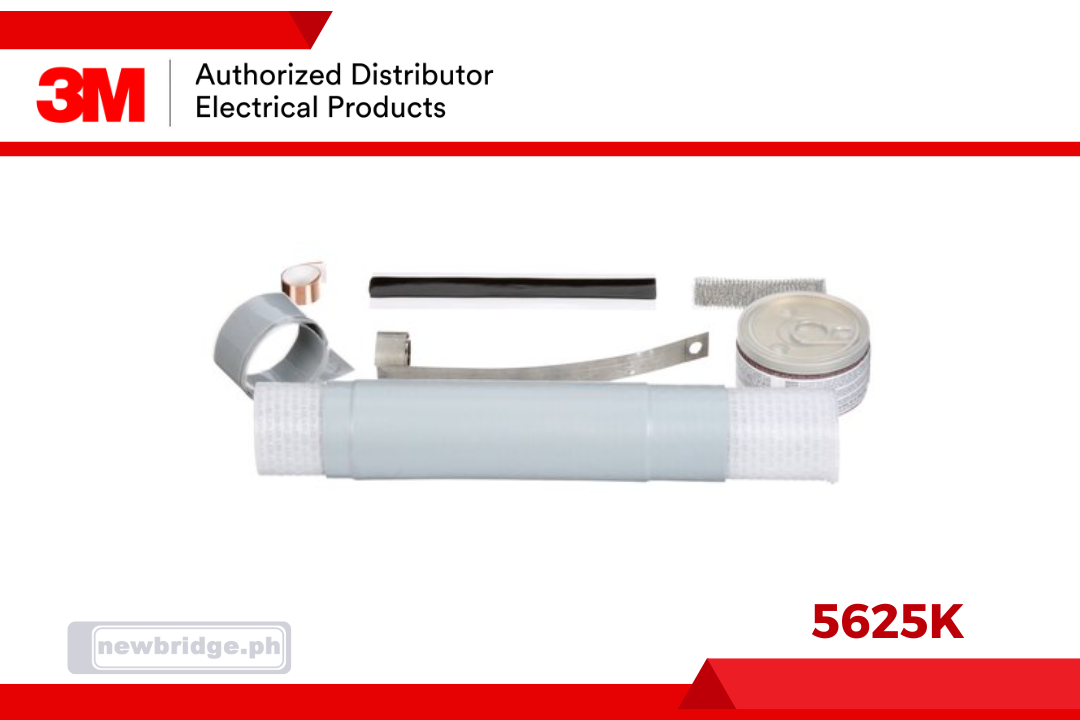

Product: 5625K, 3M™ Cold Shrink QT-II Indoor Termination Kit, Tape, Wire and UniShield®, 5-15 kV, 1.09-1.80 in (28-46 mm) Cable Insul. O.D., 3 terminations/kit
Ref. Catalog: 5625K
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (36 x 36 x 13)
Weight: g (750)
Price: 22,536.75
Stocks: 1
Add to cartProvides a void-free seal to tape shield, wire shield and UniShield® power cables High dielectric-constant material regulates the distribution of electric field stress Suitable for indoor applications Termination has 1.09 to 1.80-in insulation O.D. Accommodates wire sizes of 600 to 1500 kcmil at 5kV 100%, 600 to 1500 kcmil at 5kV 133%/8 kV 100%, 500 to 1250 kcmil at 8 kV 133%, 500 to 1250 kcmil at 15kV 100%, 350 to 1000 kcmil at 15kV 133% Non-tracking, molded, silicone rubber insulation offers durability Withstands voltages of 5 to 15kV and is 110 kV BIL-rated Includes three 1-piece, single-phase, cold shrink terminations IEEE Standard 48 Class 1 Approved for weather-protected applications
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Termination has 1.09 to 1.80-in insulation O.D.
- Accommodates wire sizes of 600 to 1500 kcmil at 5kV 100%, 600 to 1500 kcmil at 5kV 133%/8 kV 100%, 500 to 1250 kcmil at 8 kV 133%, 500 to 1250 kcmil at 15kV 100%, 350 to 1000 kcmil at 15kV 133%
- Non-tracking, molded, silicone rubber insulation offers durability
- Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
- Includes three 1-piece, single-phase, cold shrink terminations
- IEEE Standard 48 Class 1 Approved for weather-protected applications
