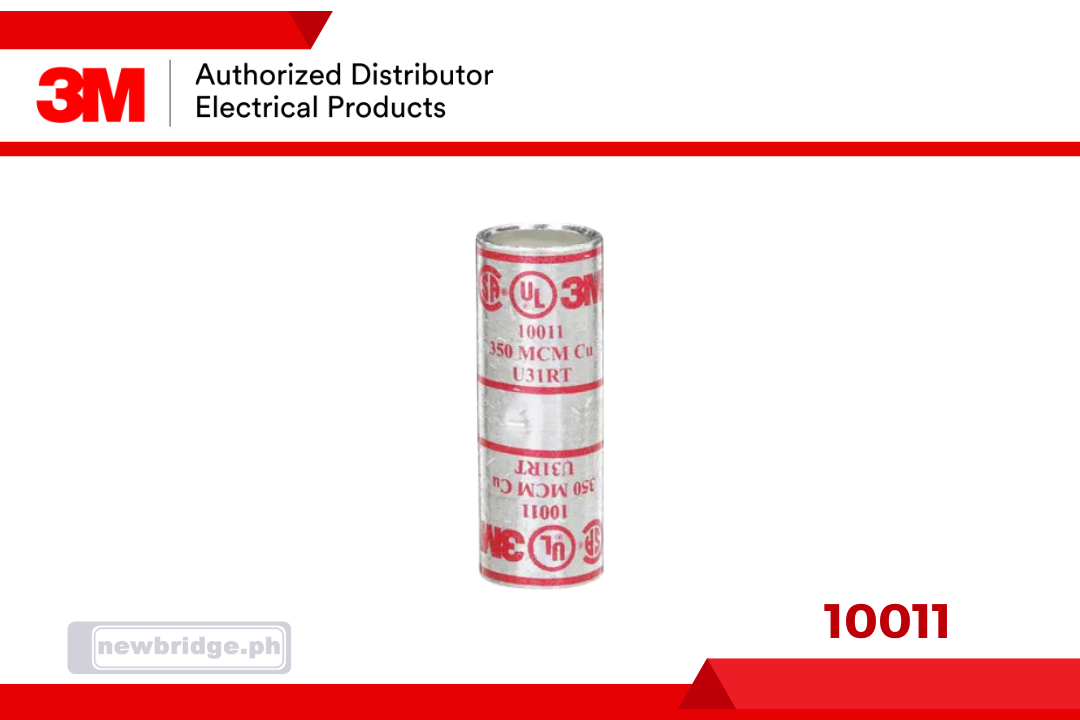

Product: 10011, 3M™ Scotchlok™ Copper Standard Barrel Connector, up to 35 kV, 350 kcmil, Red
Ref. Catalog: 10011
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (6.04 x 2.22 x 2.22)
Weight: g (100)
Price: 561.50
Stocks: 1
Add to cart3M™ Scotchlok™ Copper Compression Connectors, 10000 Series are one-piece, standard-barrel, seamless copper connectors and are designed to cover a wide range of conductor sizes from 6 AWG through 1000 kcmil (MCM). The 11000 Series are onepiece, seamless, long-barrel copper connectors and are designed to cover a range of conductor sizes from 2/0 AWG through 1000 kcmil (MCM). They are designed to connect copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends and an integral center cable stop ensure simplicity and ease of conductor insertion.
- Simple installation using readily available tools
- Integral center cable stop
- Manufactured using tin-plated copper
- Color coded printing for easy connector identification
They are designed to connect copper conductors. Each connector is electro-tin plated to resist electrolytic corrosion. They are installed using standard industry tooling. Chamfered ends and an integral center cable stop ensure simplicity and ease of conductor insertion.
