Product: METSEDM3110, EasyLogic - Digital Panel Meter DM3000 - Ampermeter - three phases
Ref. Catalog: METSEDM3110
Brand: Schneider Electric
Category: Industrial Controls & Automation
Dimension: cm (3.8 x 9.6 x 9.6)
Weight: g (220)
Price: 1,893.00
Stocks: 1
Add to cartElectromagnetic compatibility Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 IP degree of protection Front panel: IP50 Body: IP30 Relative humidity 5…95 % Pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -25…70 °C Colour Black Width 96 mm Height 96 mm Depth 38 mm Cut-out dimensions 92 x 92 mm Net weight 220 g

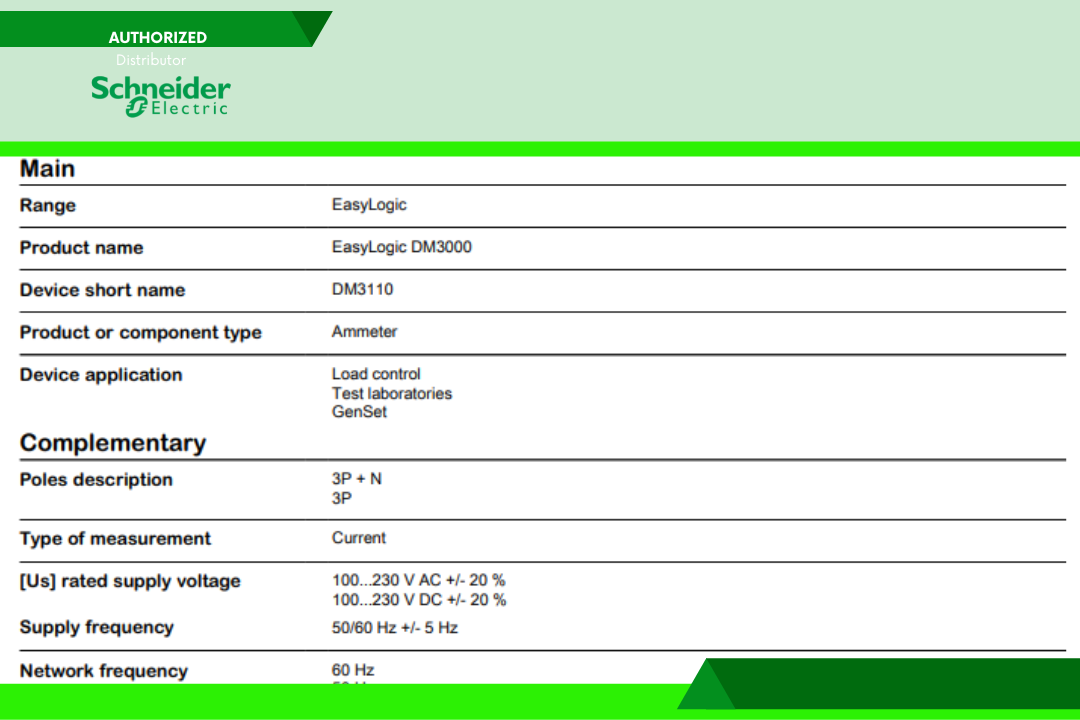

Main Range EasyLogic
Product name EasyLogic DM3000
Device short name DM3110
Product or component type Ammeter
Device application Load control Test laboratories GenSet
Complementary Poles description 3P + N 3P
Type of measurement Current
[Us] rated supply voltage 100...230 V AC +/- 20 % 100...230 V DC +/- 20 %
Supply frequency 50/60 Hz +/- 5 Hz
Network frequency 60 Hz 50 Hz

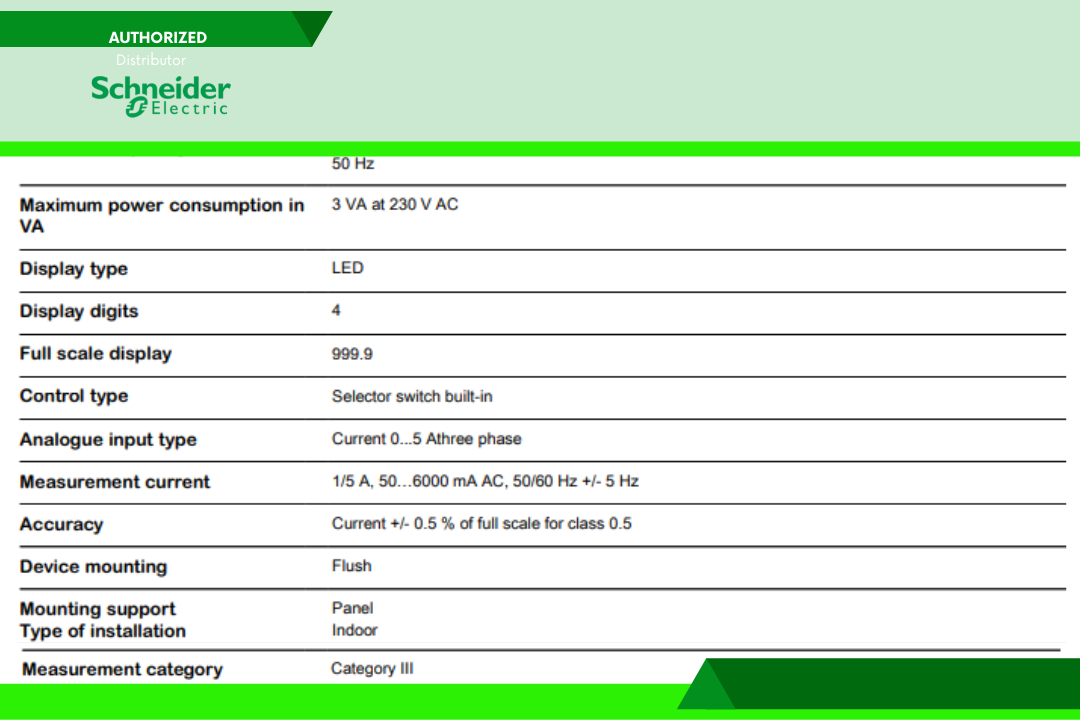

Maximum power consumption in VA
3 VA at 230 V AC
Display type LED
Display digits 4
Full scale display 999.9
Control type Selector switch built-in
Analogue input type Current 0...5 Athree phase
Measurement current 1/5 A, 50…6000 mA AC, 50/60 Hz +/- 5 Hz
Accuracy Current +/- 0.5 % of full scale for class 0.5
Device mounting Flush
Mounting support Panel
Type of installation Indoor
Measurement category Category III

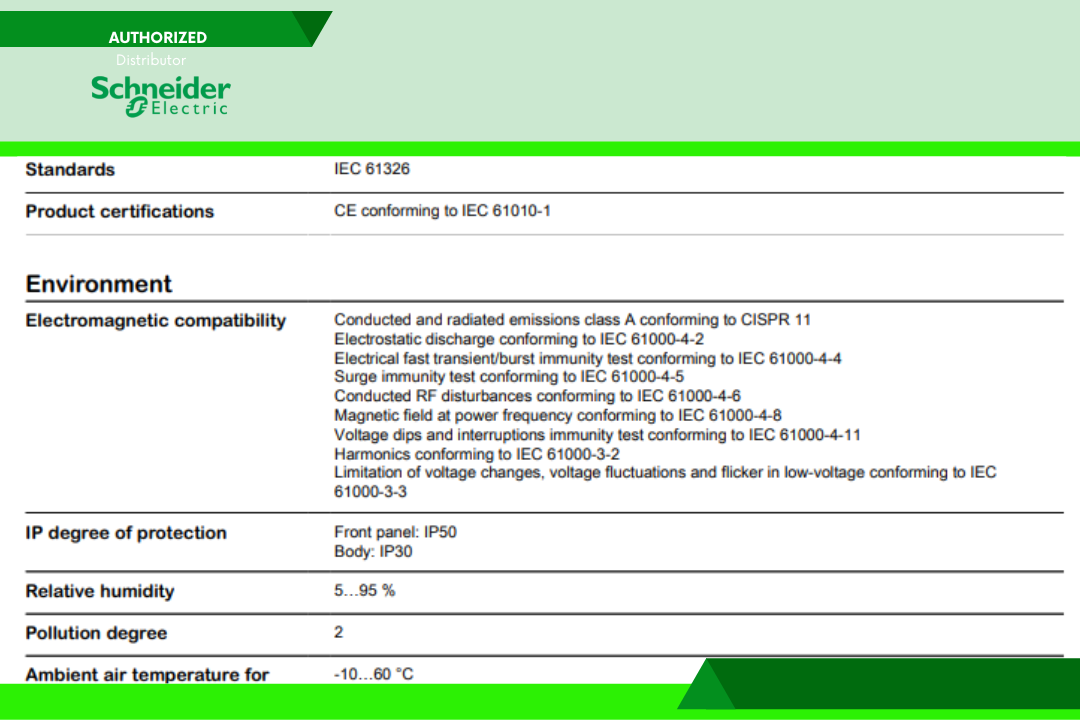

Standards IEC 61326
Product certifications CE conforming to IEC 61010-1
