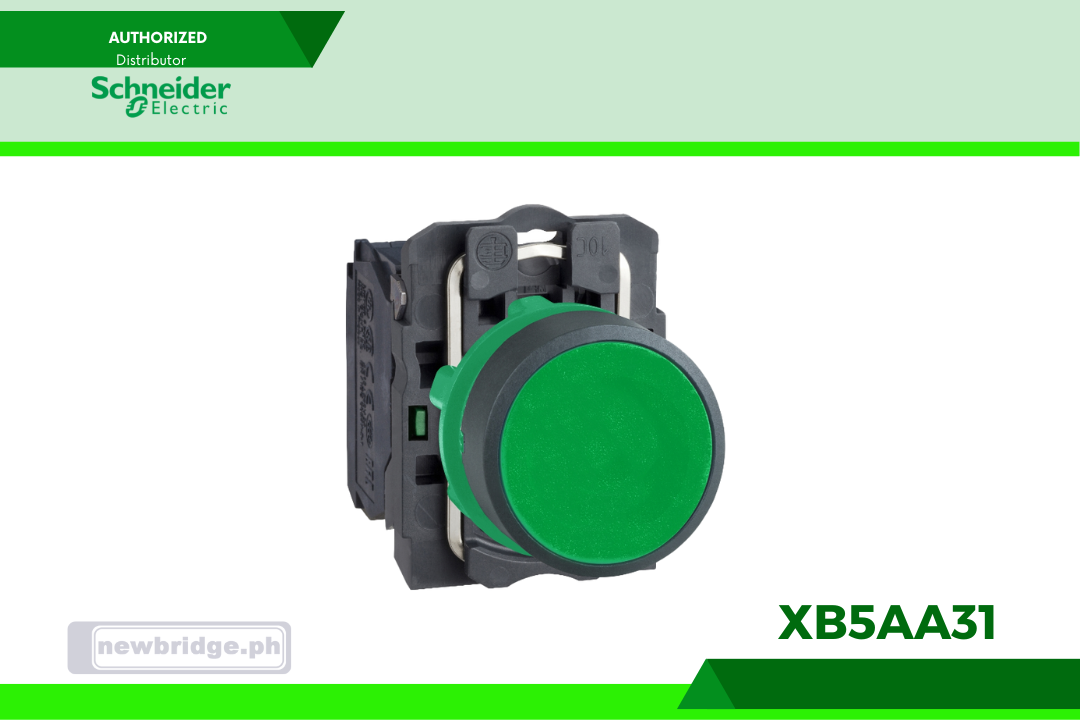

Product: XB5AA31- Harmony, Push button, plastic, flush, green, Ø22, spring return, unmarked, 1 NO
Ref. Catalog: XB5AA31
Brand: Schneider Electric
Category: Industrial Controls & Automation
Dimension: cm (5.2 x 3 x 4.2)
Weight: g (37)
Price: 334.00
Stocks: 1
Add to cartThis Harmony XB5, modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
range of product Harmony XB5 product or component type Push-button device short name XB5 bezel material Plastic
Dark grey plastichead type Standard fixing collar material Plastic mounting diameter 22 mm sale per indivisible quantity 1 shape of signaling unit head Round type of operator Spring return operator profile Green flush, unmarked contacts type and composition 1 NO contact operation Slow-break connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
