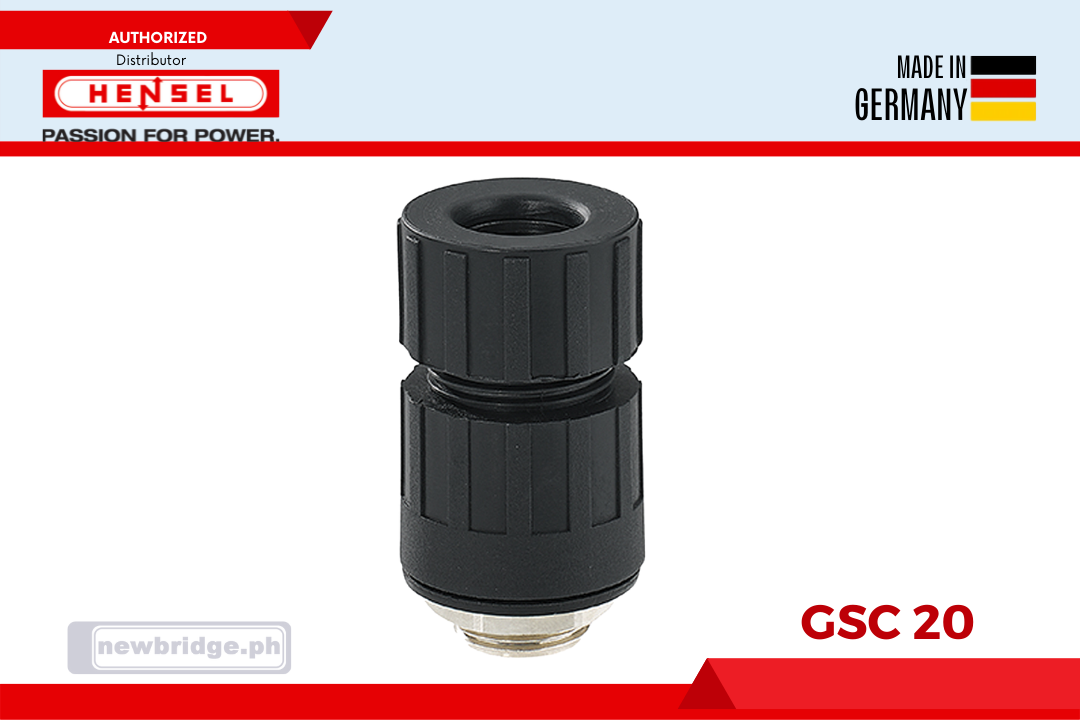

Product: Cable gland for SWA cable GSC 20
Ref. Catalog: GSC 20
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (2 x 2 x 2)
Weight: g (232)
Price: 991.00
Stocks: 0
Add to cartCable gland for steelwire armoured cable for knockouts M 20 sealing range: Ø 11,5-16 mm ISO thread M 20 x 1.5 bore-hole: Ø 20.2 mm wall thickness of up to 5 mm with strain relief and locknut for indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor) ambient temperature - 25 °C to + 55 °C colour: black tightening torque 4,0 Nm
- Cable glands for steel wire armoured cables
- for corrosive and wet locations
- Cable glands manufactured from high quality nickel plated brass
- The screw-on Corrosion Guard is made of insulating material to protect the steel wire armour and metal parts from corrosion
- Ingress protection IP66/IP67 with KF, IP68 with WP cable junction boxes Including brass locknuts and polypropylene gaskets
- Slip-on earth tags ET 20, ET 25 and ET 32 as accessories S
