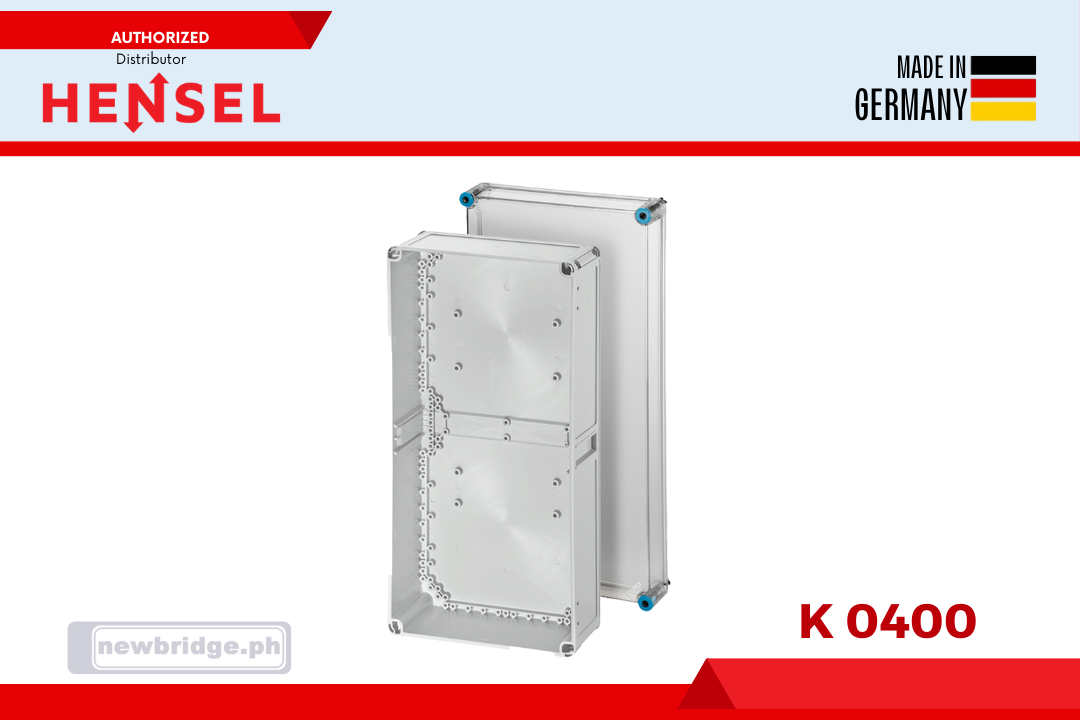

Product: K 0400 Empty boxes Polycarbonate IP66
Ref. Catalog: K 0400
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (30 x 17 x 60)
Weight: g (2933)
Price: 6,287.00
Stocks: 1
Add to cartrated insulation voltage Ui = 690 V a.c. / 1000 V d.c. impact strength IK 08 (5 Joule) static load mounting plate or DIN rail = 9.2 kg lid = 3.2 kg power dissipation capability at Δϑ = 40 K Pde = 93 watts wall thickness enclosure = 3 mm lid = 3 mm material PC (Polycarbonate) degree of protection IP 66 mounting width 275 mm mounting height 575 mm max. installation depth 146 with built-in mounting plate mm max. installation depth 135 with built-in DIN rail mm width 300 mm height 600 mm depth 170 mm weight 2,933 kg in accordance with IEC 62208:2011
- Built-in dimensions W 275 x H 575 x D 150 mm
- enclosure size 4, type Mi
- for installation equipment on DIN rails or mounting plates (order separately)
- max. installation depth with built-in mounting plate 146 mm,
with built-in DIN rail 135 mm - with transparent lid
- lid fasteners for tool operation
- sealable
- box walls without knockouts
- optional hinges for device installation in the lid
- external brackets for wall fixing as accessories
- colour: grey, RAL 7035
- material: PC (polycarbonate)
