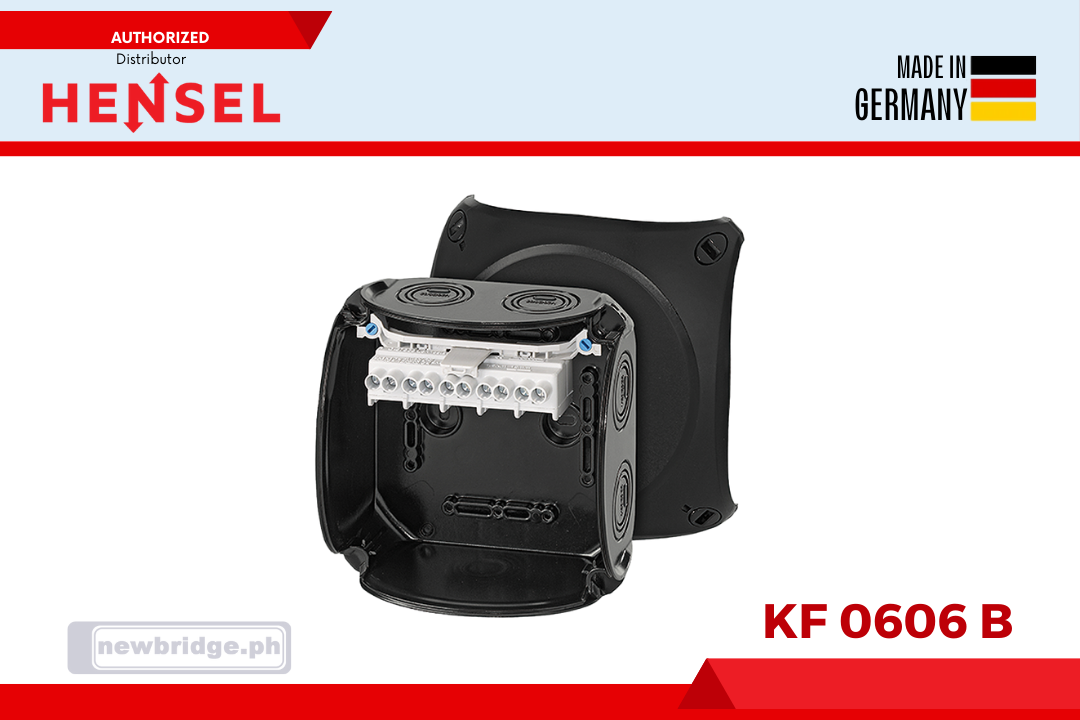

Product: KF 0606 B Cable junction ”Weatherproof“ for outdoor installation KF 0606 B
Ref. Catalog: KF 0606 B
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (13 x 7.7 x 13)
Weight: g (253)
Price: 1,768.00
Stocks: 1
Add to cart1.5-6 mm², Cu 3~ terminal with 2 clamping units per pole 5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f with one cable entry M 25 from the rear side cable entries via knockouts, order ASS separately (see cable entry systems LES) "weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.) saltwater-proof "offshore applications" lid fasteners sealable without accessories retaining strap and external brackets for wall fixing included colour: black, RAL 9011
rated insulation voltage Ui = 690 V a.c./d.c.
rated current: 40 A
material PC-GFS (polycarbonate)
degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
width 130 mm
height 130 mm
depth 77 mm
weight 0,253 kg
tightening torque for terminal 1.5 Nm
in accordance with IEC 60670-22
in accordance with DNV GL - Certificate No: TAE00000EE
