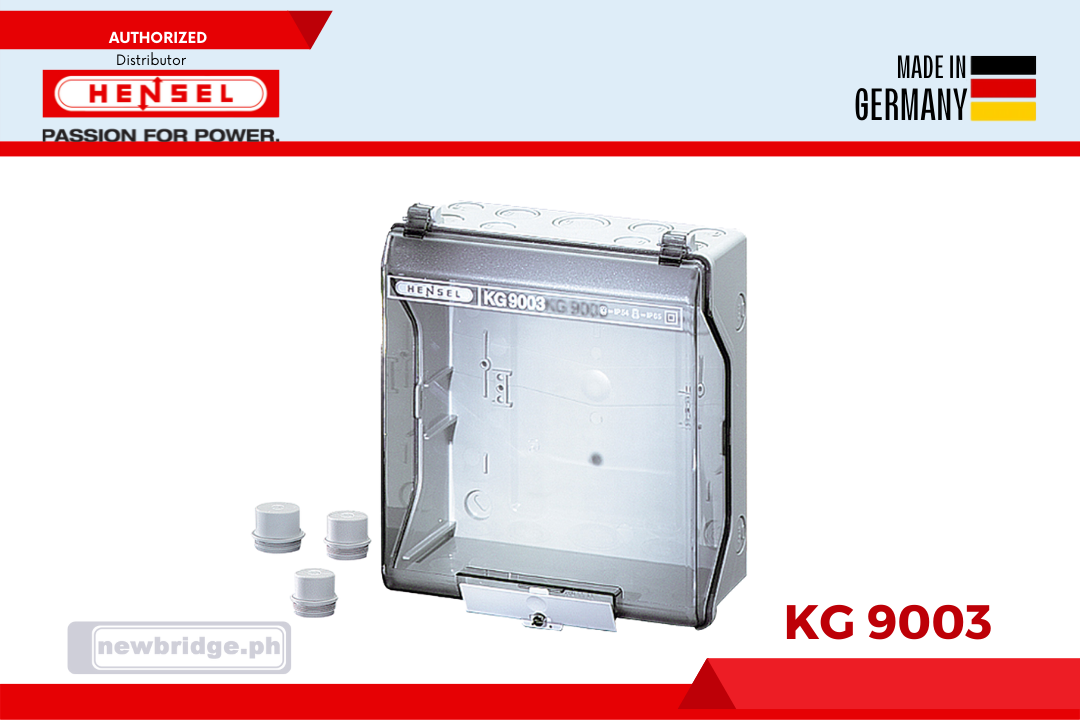

Product: Empty boxes (Polystyrene) with transparent hinged lid
Ref. Catalog: KG 9003
Brand: Hensel
Category: Electrical Panels & Enclosures
Dimension: cm (22 x 12 x 25)
Weight: g (710)
Price: 2,102.00
Stocks: 0
Add to cartBuilt-in dimensions W 182 x H 205 x D 95 mm for installation equipment on DIN rails or mounting plates (order separately) max. installation depth with built-in mounting plate 95 mm, with built-in DIN rail 89 mm please order DIN rails or mounting plates additionally with transparent hinged lid fastener for tool operation sealable cable entry via metric knockouts included cable entry:2 ESM 25, sealing range Ø 9-17 mm and 1 ESM 32, sealing range Ø 9-23 mm colour: grey, RAL 7035 material: PS (polystyrene)
rated insulation voltage Ui = 1000 V a.c./d.c.
impact strength IK 08 (5 Joule)
static load mounting plate or DIN rail = 1.6 kg
lid = 1.6 kg
power dissipation capability at Δϑ = 40 K Pde = 17.6 watts
wall thickness enclosure = 3 mm
lid = 3 mm
protection class II
material PS (Polystyrene)
width 217 mm
height 253 mm
depth 115 mm
weight 0,71 kg
in accordance with IEC 62208:2011
