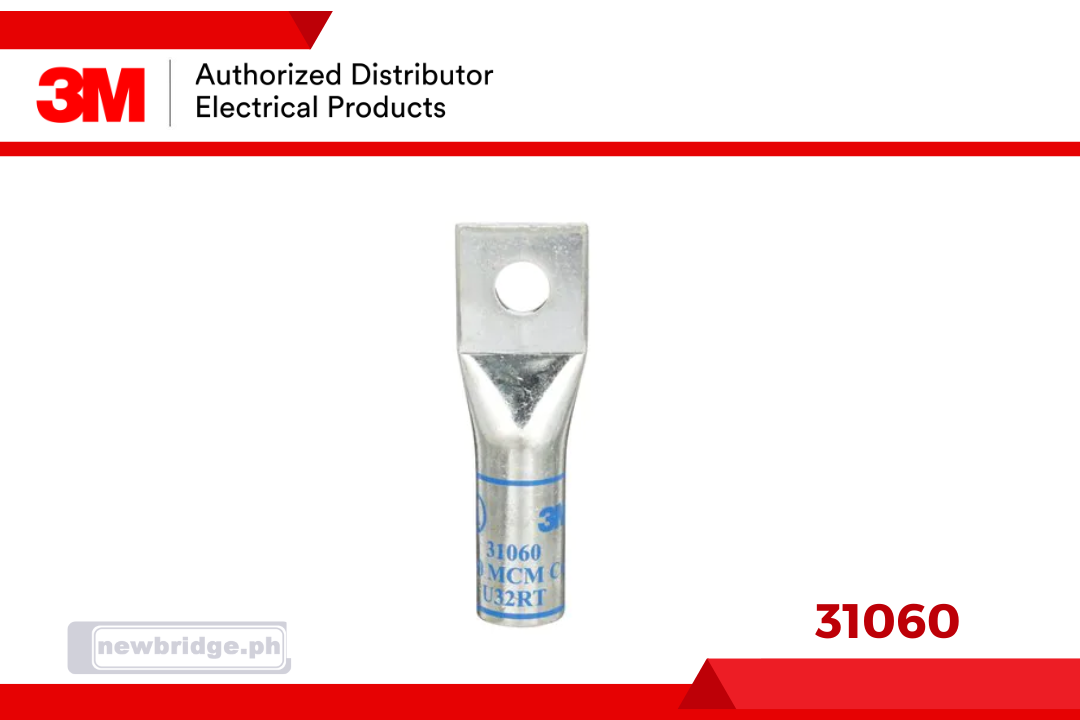

Product: 31060, 3M™ Scotchlok™ Copper One Hole Long Barrel Lug, up to 35 kV, 400 kcmil, Blue
Ref. Catalog: 31060
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (3.42 x 2.41 x 10.57)
Weight: g (100)
Price: 1,039.50
Stocks: 1
Add to cart3M™ Scotchlok™ Copper Compression Lugs are one-piece, seamless copper and are designed to cover a wide range of conductor sizes. 3M™ Scotchlok™ Copper One Hole Long Barrel Lug 31060, up to 35 kV, 400 kcmil, Blue has a 1/2 in Stud Size, a 0.762 in (19,3 mm) I.D., and a 4.160 in (105,7 mm) length. UL listed CSA Certified Suitable for indoor and outdoor applications Made of copper for good conductivity and tin plating for corrosion resistance Rated for 35 kV applications UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Specifications
| Barrel Length (metric) | 50.8 mm |
| Barrel Style | Long Barrel |
| Brand | Scotchlok™ |
| Center of Hole to End of Pad (metric) | 16.7 mm |
| Connector Description | One Hole |
| For Use With | Copper Conductor Only |
| Inside Diameter (metric) | 19.3 mm |
| Material | Copper |
| Maximum Voltage | 35 Kilovolt |
| Outside Diameter (metric) | 24.1 mm |
| Overall Length (Metric) | 105.7 mm |
| Pad Length (metric) | 34.2 mm |
| Pad Width (metric) | 35.8 mm |
| Product Color | Blue |
| RoHS 2011/65/EU Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Stud Sizes | 1/2 Inch |
