Product: 82-A1N, 3M™ Scotchcast™ Inline Resin Power Cable Splice kit, Up to 2 AWG
Ref. Catalog: 82-A1N
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (25 x 16 x 7)
Weight: g (300)
Price: 2,553.75
Stocks: 1

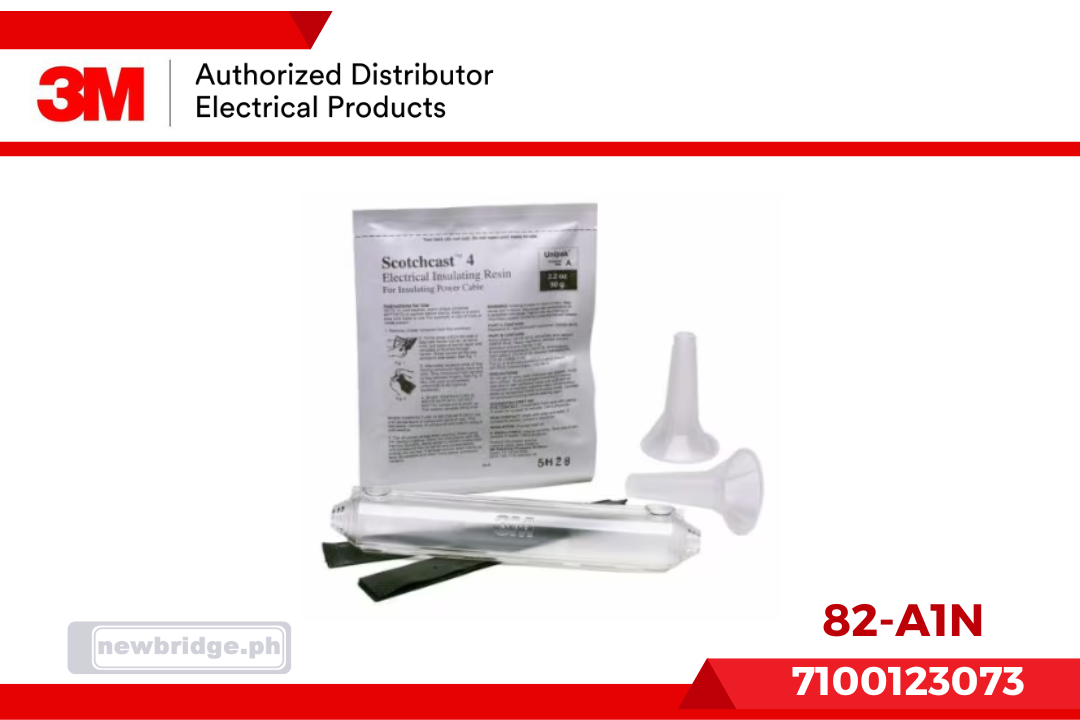

Add to cart3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations. 3M™ 82-AN Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.
Highlights
- INSULATES AND SEALS UNSHEILDED SPLICES: On both single and multiple conductor cables
- ENGINEERED VERSATILITY: Make inline splices on 5 kV cables and multiple conductor cables through 1 kV
- SPLICES NON-SHIELDED CABLES: Creating a permanent watertight seal on 5kV rated single conductor cables and 1kV rated multiple conductor cables
- ALL-WEATHER APPLICATIONS: Designed for weather-exposed or direct burial locations
- FAST AND EASY: Permanent watertight protection for submerged applications up to 600 V and 90 °C
- QUICK CURE TIME: Cures in about 1-2 hours (pending temperature/conditions)
- NO HEAT OR TOOLS: Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4N resin
- UL LISTED: For use with UL listed connectors only
