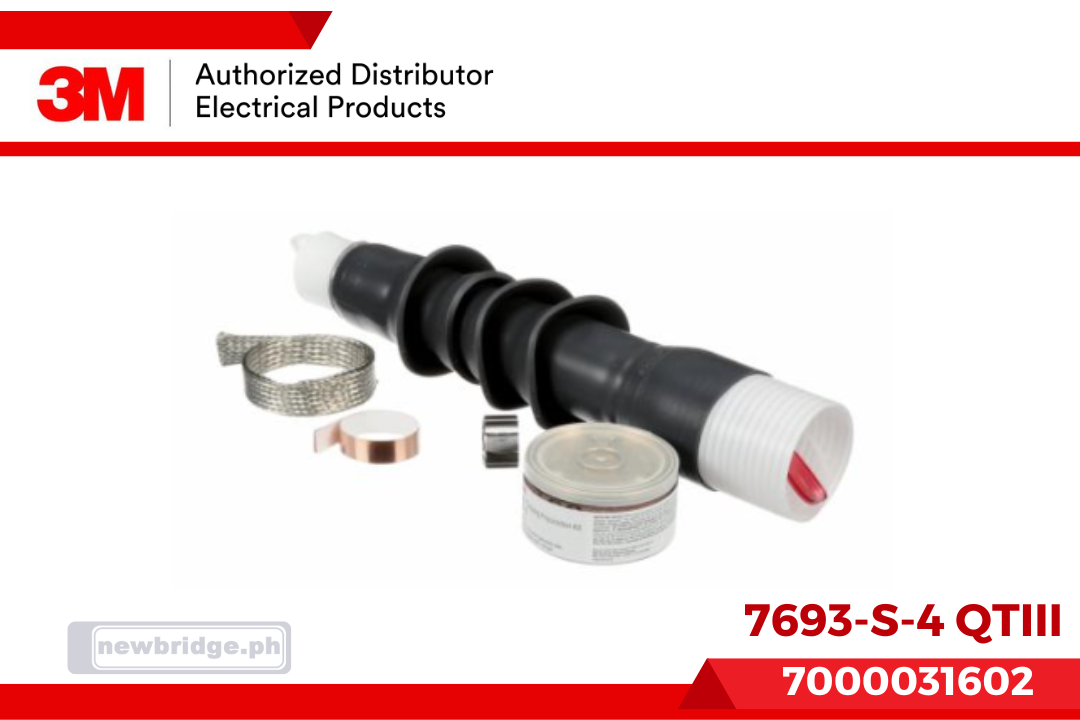

Product: 7693-S-4, 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination Kit, shielded cable, 3M ID 7000031602
Ref. Catalog: 7693-S-4 QTIII
Brand: 3M
Category: Electrical & Termination kit
Dimension: cm (50 x 15 x 20)
Weight: g (500)
Price: 31,989.00
Stocks: 1
Add to cart3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7693-S-4 has a conductor size range for 5 kV: 300-500 kcmil, 8 kV: 250-500 kcmil, 15 kV: 2/0 AWG-300 kcmil and 25/28 kV: 2-4/0 AWG. Each kit contains: Three 3M™ Hi–K Tracking Resistant Silicone Rubber Terminations, three 3M™ Preformed Ground Braids, three 3M™ Constant Force Springs, three 3M™ EMI Copper Foil Shielding Tape Strips 1181, six Scotch® Mastic Strips 2230, one 3M™ Cable Cleaning Preparation Kit CC-2, and one Instruction Sheet.
Details
Highlights
- Quick installation with versatile one-piece design
- No torches, heat or special tools required
- Hi-K stress control
- Excellent tracking resistance, UV resistance and water-shedding properties
- Includes everything required to make 3 terminations (except lugs)
- Conductor size ranges: 5 kV: 300-500 kcmil 8 kV: 250-500 kcmil 15 kV: 2/0 AWG-300 kcmil 25/28 kV: 2-4/0 AWG
